Algae, a diverse group of photosynthetic organisms, have emerged as a captivating solution to the growing demand for renewable energy sources. Among their remarkable attributes, algae possess high oil content, making them an attractive candidate for oil extraction.

The process of extracting oil from algae holds immense potential for various industries, including biofuels, cosmetics, food, and pharmaceuticals. As the world seeks sustainable alternatives to fossil fuels and environmentally friendly products, algae oil extraction offers a compelling solution.

Understanding Algae and Oil Content

Algae represent a vast array of organisms, ranging from microalgae, such as Chlorella and Nannochloropsis, to macroalgae, such as seaweed. What makes algae particularly fascinating is their ability to produce significant amounts of oil.

Microalgae, in particular, are highly regarded for their rapid growth rates and exceptionally high oil productivity. The oil content in algae species can range from 5% to 50%, depending on the specific strain and environmental conditions.

The oil content in algae is influenced by various factors, including the availability of nutrients, light intensity, temperature, and the cultivation environment. By understanding these factors, researchers and industry professionals can optimize the growth conditions to maximize oil production.

Cultivating Algae for Oil Production

1. Selection of Suitable Algae Strains:

The first step in algae oil extraction is selecting the most suitable strains that exhibit high oil productivity. Scientists have identified specific strains, such as Chlorella, Nannochloropsis, and Dunaliella, which demonstrate favorable characteristics for oil production. These strains offer a balance between rapid growth rates and oil content.

2. Cultivation Systems:

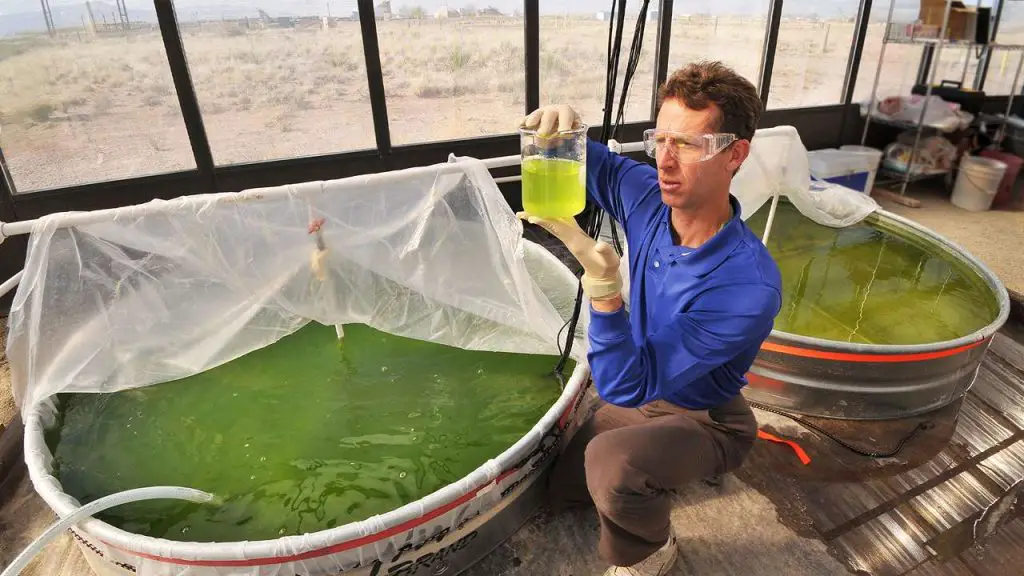

Algae can be cultivated using different systems, including open ponds or closed photobioreactors. Open ponds are cost-effective and suitable for large-scale production but require significant land area and face challenges related to contamination and maintaining optimal growth conditions.

Photobioreactors, on the other hand, provide better control over environmental factors, such as light intensity, temperature, and nutrient supply. However, they are more expensive to set up and operate.

3. Optimal Growth Conditions:

Maintaining optimal growth conditions is crucial for maximizing oil production in algae. Algae require sufficient light, controlled temperature, and a balanced supply of nutrients, particularly nitrogen, and phosphorus, to thrive.

By fine-tuning these parameters, researchers can stimulate algae growth and promote the accumulation of oil in their cells.

4. Contamination Control:

Algae cultivation is vulnerable to contamination by other microorganisms, such as bacteria and fungi. Contamination can hinder the growth of algae and reduce oil production.

Implementing strict sterilization methods, maintaining aseptic conditions, and regularly monitoring the algae culture can help prevent contamination and ensure the health of the algae.

crude
Image Credit: making-biodiesel-books.com

Harvesting Algae

1. Harvesting Methods:

Various techniques are employed for algae harvesting, including centrifugation, flocculation, and filtration.

  • Centrifugation: Utilizes the centrifugal force to separate algae from the culture medium.
  • Flocculation: The addition of flocculants, such as chemicals or natural polymers, to induce the clumping of algae cells, facilitating their removal.
  • Filtration: Passing the algae culture through filters of different pore sizes to capture the algae cells while allowing the liquid to pass through.

2. Advantages and Limitations:

Each harvesting method has its own advantages and limitations. Centrifugation, for instance, is highly efficient in separating algae from the culture medium but requires substantial energy input.

Flocculation, the process of inducing clumping of algae cells using flocculants, offers a cost-effective approach but requires careful selection of appropriate flocculants. Filtration, which involves passing the algae culture through filters, is suitable for smaller-scale operations but may encounter challenges related to clogging.

3. Considerations for Large-scale Harvesting:

Scaling up algae harvesting to meet commercial demands requires careful consideration of various factors. These include selecting appropriate harvesting equipment, ensuring cost-effectiveness, and exploring the possibility of automation.

Developing efficient and economically viable large-scale harvesting methods is vital for the successful implementation of algae oil extraction.

Oil Extraction Techniques

1. Mechanical Methods:

Several mechanical techniques are used for oil extraction from algae:

  • Pressing: Applying mechanical pressure to rupture algae cells and release the oil.
  • Solvent Extraction: Using organic solvents to dissolve the oil from algae cells.
  • Supercritical Fluid Extraction: Utilizing supercritical fluids, such as carbon dioxide, to extract oil at high pressures and temperatures.

2. Comparison of Extraction Techniques:

Each extraction method offers its own advantages and considerations. Pressing is a simple and straightforward method but may have lower extraction efficiency. Solvent extraction yields higher oil recovery but requires careful handling of solvents.

Supercritical fluid extraction allows for high-quality oil extraction but necessitates specialized equipment and expertise.

3. Potential Challenges and Mitigation Strategies:

Challenges in oil extraction include the presence of cell wall components, low oil-to-biomass ratio, and solvent residues. Researchers are exploring innovative strategies, such as pretreatment methods and optimized extraction conditions, to overcome these challenges and improve extraction efficiency.

Refining and Processing Algae Oil

1. Removal of Impurities and Moisture:

Extracted algae oil may contain impurities and moisture, which need to be removed for further processing. Techniques such as filtration, centrifugation, and drying methods are employed for purification and moisture reduction.

2. Conversion into Biodiesel or Valuable Products:

Algae oil, primarily composed of triglycerides, can be converted into biodiesel through a process called transesterification.

In addition to biodiesel, advanced refining techniques, such as hydroprocessing and catalytic cracking, enable the production of valuable compounds such as bio-jet fuel, bio-based chemicals, and nutritional supplements. These transformations add value to the algae oil and expand its potential applications.

3. Enhancing Oil Stability and Quality:

To improve the oil stability and quality, refining processes such as degumming, neutralization, and winterization can be employed. These steps remove impurities, adjust the acidity, and prevent crystallization, respectively, resulting in a higher-quality algae oil.

Applications and Future Prospects

Potential Uses of Algae Oil:

Algae oil finds applications in various industries due to its unique properties and composition. It is utilized in the production of biofuels, including biodiesel and bio-jet fuel, which serve as sustainable alternatives to conventional fossil fuels.

Algae oil is also utilized in the cosmetics industry for its rich content of omega-3 fatty acids and antioxidants. Moreover, it holds potential in the food and pharmaceutical industries for nutritional supplements and bioactive compounds.

Emerging Research and Innovations:

The field of algae oil extraction is witnessing ongoing research and innovation. Scientists are exploring ways to enhance oil productivity in algae through genetic engineering, optimization of cultivation conditions, and the exploration of novel extraction techniques.

Advancements in algae biotechnology and cultivation systems hold promise for increased oil yields, reduced production costs, and the discovery of new applications for algae oil.

Environmental and Economic Benefits:

The extraction of oil from algae offers significant environmental and economic benefits. Algae cultivation can contribute to carbon dioxide sequestration, mitigating greenhouse gas emissions.

Algae-based biofuels provide a renewable and sustainable alternative to fossil fuels, reducing dependence on finite resources and lowering carbon emissions.

Furthermore, commercial-scale algae production has the potential to create employment opportunities and contribute to the development of a more sustainable and circular economy.

Conclusion

The extraction of oil from algae presents a promising pathway for sustainable energy production and a wide range of industrial applications. By understanding the cultivation, harvesting, extraction techniques, and refining processes involved, researchers and industry professionals can unlock the full potential of algae as a renewable resource.

Ongoing research and development efforts are crucial to further optimize oil yields, refine extraction methods, and explore new applications for algae oil. Algae oil extraction holds immense promise in shaping a greener future and fostering a more sustainable and resilient society.
